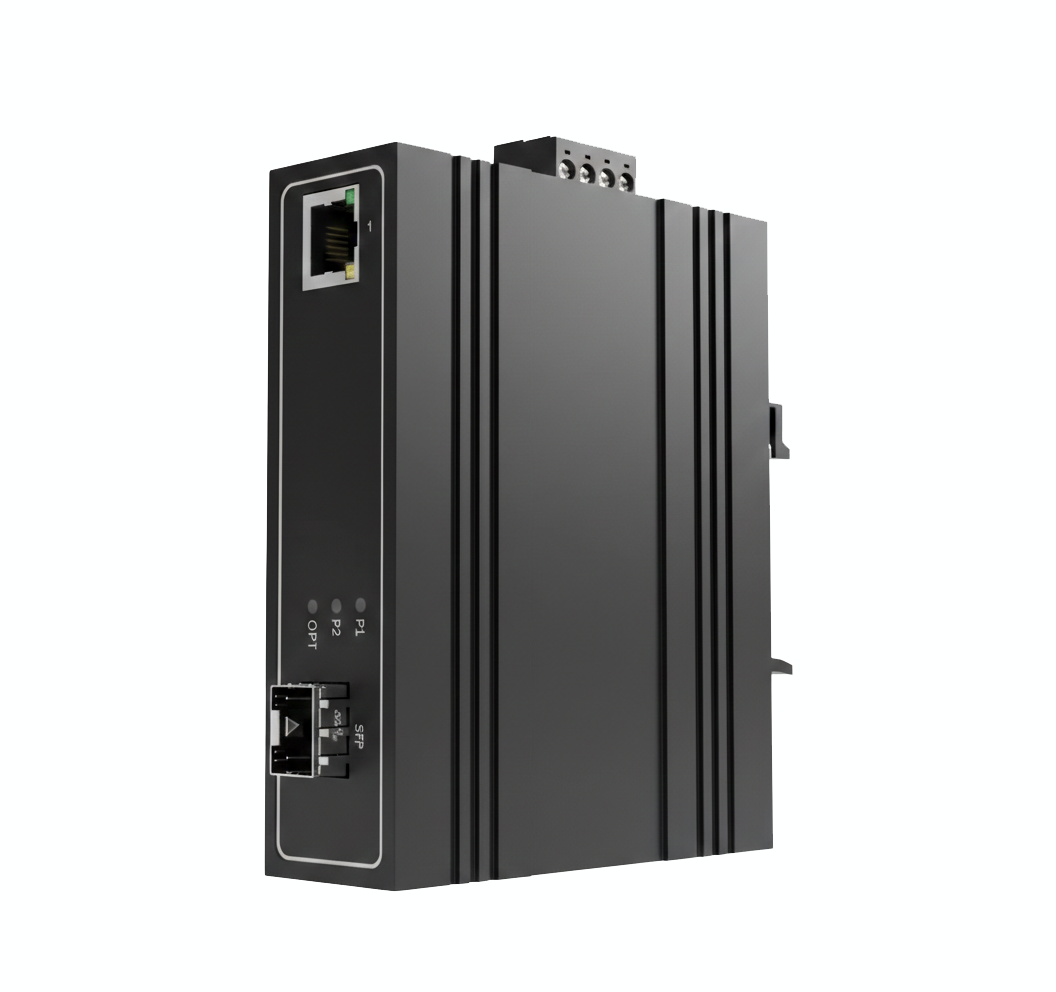

The AL-3101GE
Industrial Media Converter
10/100/1000Base-T to 100/1000Base-X
The AL-3101GE series are unmanaged industrial-grade media converters
with 1× 10/100/1000Base-T RJ45 and 1× 100/1000Base-X fiber interface.
They support LFS (Link Fault Signaling), flow control, broadcast storm
protection, and fiber speed selection via DIP switch.
Designed for industrial environments, they feature 12–58VDC wide-range
redundant power input with reverse polarity and over-voltage protection, IP40
fan-less housing with DIN-rail mounting, -40°C to 75°C operating
temperature, and high EMI/EMC resistance — ideal for factory automation,
transportation and IP surveillance applications.
Key Features
- 1× 10/100/1000Base-T RJ45 port, 1× 100/1000Base-X SFP fiber port
- DC 12–58V input, redundant power supply with reverse polarity and over-voltage protection
- DIP switch configurable functions: Support LFS (Link Fault Signaling), Flow Control, Broadcast Storm Protection
- Support 10K Bytes Jumbo Frame and 1M large buffer
- Support 4KV surge protection and ESD protection (Air: 15kV, Contact: 8kV)
- Supports LFP with dual fiber redundant uplink to the switch
- Operation temperature: -40°C to 75°C
